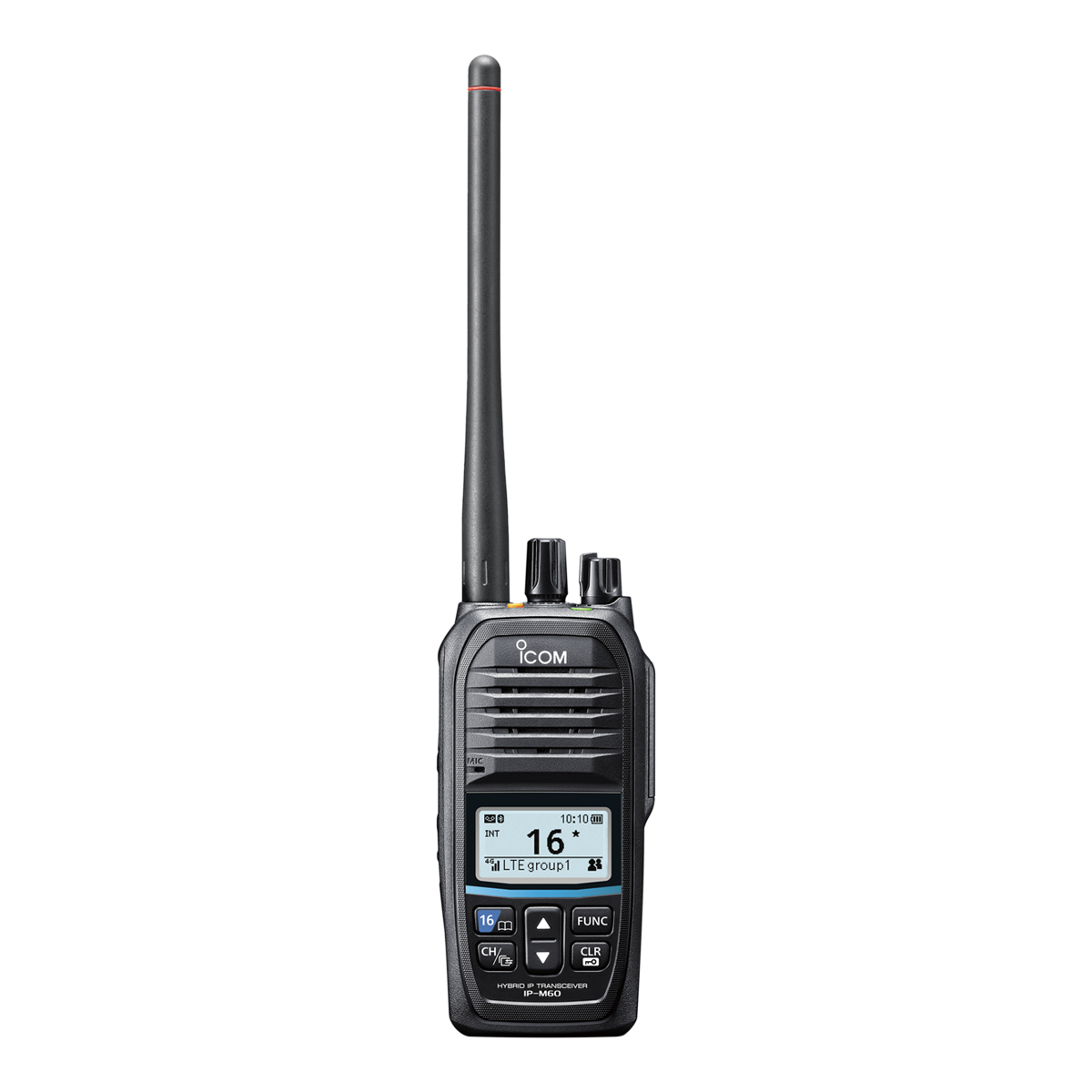

HYBRID IP TRANSCEIVER (LTE + VHF MARINE)

IP-M60

World's First LTE and VHF Marine Hybrid Transceiver

Offshore and Onshore Communication

Push-to-talk allows you to communicate with one or more people at the press of a button, without having to dial their number or wait for them to answer. It works like a walkie-talkie, but instead of using radio waves that are limited by range and terrain, satellite PTT uses satellites in space to transmit signals globally. This means you can stay connected even in remote areas where traditional cellular service may be unavailable. It also allows for group communication, making it ideal for or large work crews to stay in touch.

MSAT PTT is a real-time, voice-based service that provides point-to-multipoint and point-to-point communication at the simple push of a button. Communicate with up to Private mode PTT is yours for one-to-one conversations as well.

Cellular (LTE) Mode

In Cellular mode, communication takes place over the carrier's LTE (or 3G) network, allowing calls anywhere within coverage. Simultaneous TalkListen™ enables full-duplex communication, so users can talk and listen at the same time—just like a phone call.

Marine Mode

This mode operates as a VHF marine radio, offering the same core functions and performance as traditional models like the Icom IP-M25. VHF marine communication is essential for ensuring maritime safety between vessels and coastal stations.

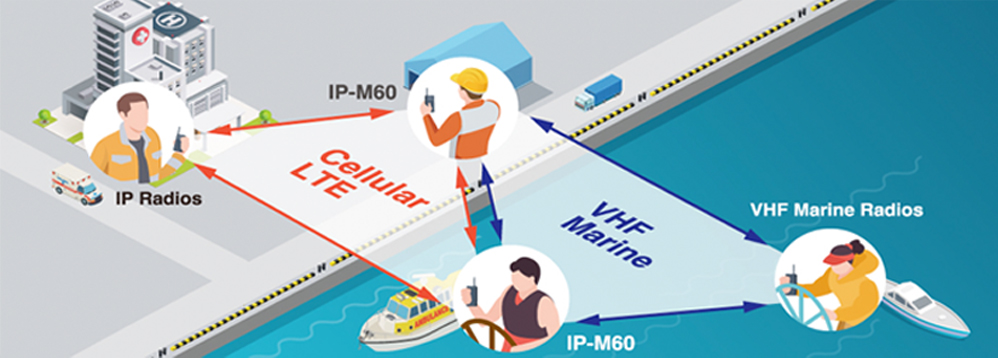

Cellular (LTE) + Marine Mode

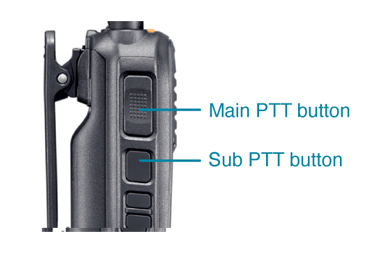

Cellular and Marine modes can be used simultaneously (simultaneous reception is possible and audio is MIXED.) PTT buttons for Main and Sub-mode make it possible to select the communication mode assigned to each with one touch. The communication mode can be selected quickly without having to switch modes. Simultaneous transmission on both channels is possible by pressing the PTT buttons for the Main and Submode at the same time.

Relay Mode — Transfers Received Audio to Another Mode

Relay Mode transfers received audio between the marine and IP radio groups. When operating in this mode, the IP-M60 automatically forwards incoming voice signals without playing them through the speaker.

* The Relay function may not be available in some countries.

Bluetooth® Enabled

The built-in Bluetooth® unit provides a wireless connection between the IP-M60 and an optional Bluetooth® headset. It also has a VOX function that enables automatic voice transmission in response to your voice, allowing hands-free operation.

1500 mW Speaker

Icom's custom high-power capacity speaker delivers a loud 1500 mW audio output with advanced acoustic sound clarity for noisy environments.

MIL-STD-810 & IP67 Specifications

The IP-M60 is tested to U.S. Military standard environmental tests and dust-tight and waterproof rating of IP67^*. It can be used with peace of mind on decks exposed to rain or splashing water, or in dusty conditions such as during ship repairs.

* 1 meter (3 feet) under water for 30 minutes.

AquaQuake™ Draining Functions

Icom's unique AquaQuake™ function emits a buzzing sound, shedding water from the speaker grill. The IP-M60 provides clear sound even if it gets wet from rain or waves.

Emergency Call Functions

Simply by pushing the Emergency button, an emergency call can be made with an audible warning to a pre-defined destination. In addition to pressing the Emergency button, the Emergency call can be triggered by the Man Down, Lone Worker, and Motion/Stationary functions.

Emergency call functions work in the Cellular mode.

Vibration Alert Function

The Vibration Alert function notifies the user that a call or text message has been received with a strong vibration. This function can be configured for individual calls, group calls, all calls, or only when receiving text data, depending on how it is used.

Noise-Canceling Function

Reduces background noise from the transmitted voice signal.

Last Four Minutes Recording

The IP-M60 has a recording and playback function, so that if you miss something, you can listen to it again immediately.

Maximum recording: 4 minutes or 10 recordings

• Automatic Firmware Update and Provisioning function works through an LTE connection
• Priority call with a high-priority authority
• Dual SIM capability to install two SIM cards at the same time
• One Touch PTT function keeps transmitting while you are talking
• Favorite channel scan, Priority channel scan, and Auto Scan Start functions
• Address book for storing talkgroup IDs
